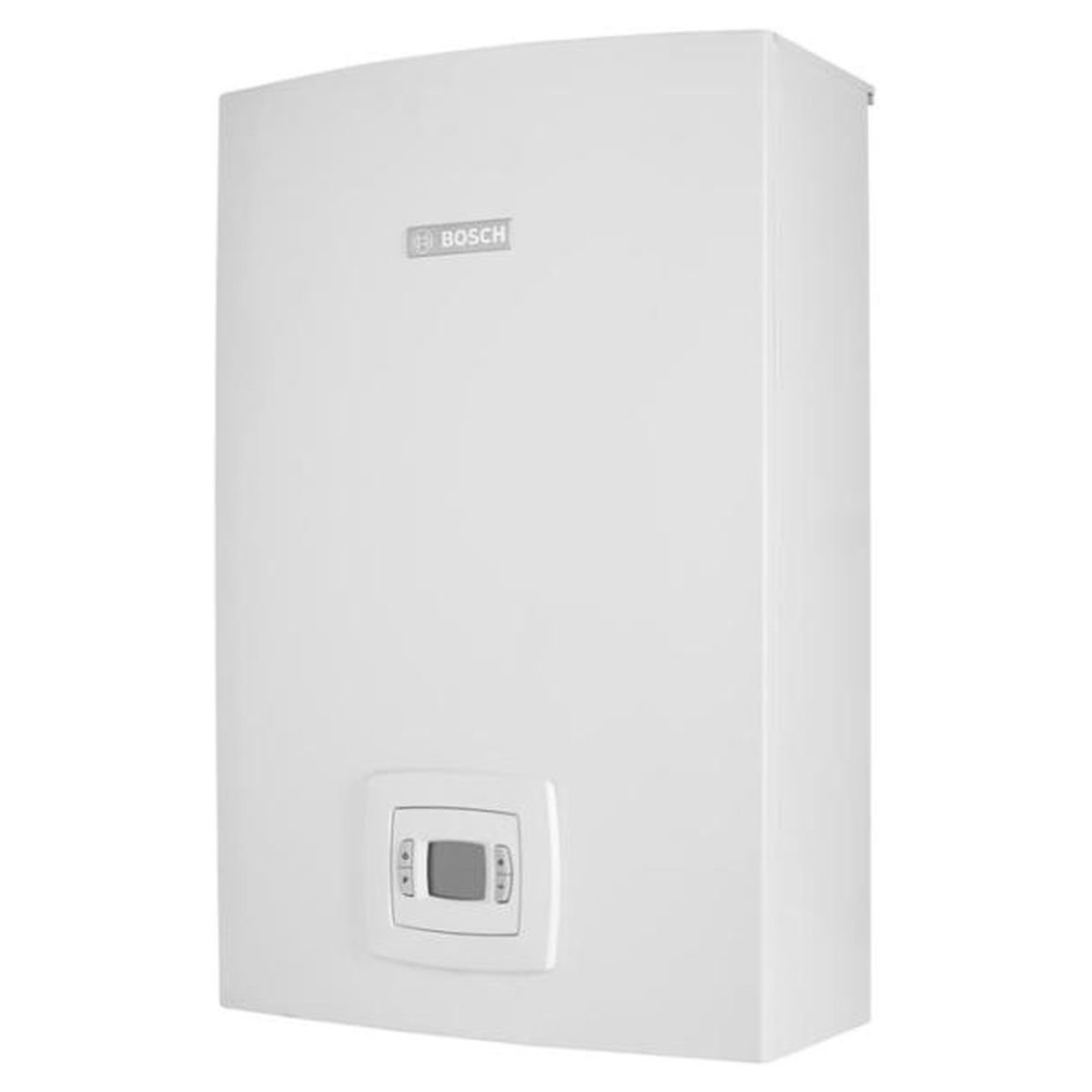

Internal Optiflow- 12 Lt/Min
Installation from $1,341
Straight Swap and Installed info:
- Free old unit disposal
- Price includes GST.
- Install information Install InformationPrices are based on the assumption that the existing system on the premises is in compliance with all relevant laws and codes. Additional costs will apply if extras are needed to bring a system up to standard or if additional valves are needed for the reliable installation of the new hot water system
*Tempering Valves are required on all installations where there is a change in type or capacity of hot water system
- Straight swap information Straight swap InformationStraight swap means Unit and Max 1.5hrs labour, additional labour and parts will be advised if needed.
- 2 Years Workmanship warranty
Ideal for internal installation in apartments and medium density buildings. Room sealed appliance and fluing for your safety. A high efficiency update for the Bosch Internal Compact mechanical range.
|OptiFlow Professional Internal||12L|
|Part Number NG||7736502487|
|Part Number LPG||7736502488|
|Part Number NG 50°C Compliant||7736502489|
|Part Number LP 50°C Compliant||7736502490|
|Maximum Gas Consumption||90.0 MJ|
|Minimum Gas Consumption||11.9 MJ|
|Efficiency at 100% of Nominal Load||82.4%|
|Data Relating to Gas - Permissable Gas Supply Pressure|
|Natural Gas||1.13 kPa|
|LP Gas||2.75 kPa|
|Data Relating to the Water|
|Maximum Admissible Pressure||1000 kPa|
|Minimum Operating Pressure||100 kPa|
|Start Up Flow @ 15°C Inlet Water Temperature||2 L/min|
|Maximum Flow, Corresponding to a Temperature Increase of 25°C||12 L/min|
|Maximum Inlet Temperature||80°C|
|Temperature Locked Model Available (adjustable to deliver 50°C at tap)||Yes|
|Power Supply Voltage||230 V|
|Mazimum Power Consumption||100 W|
|Required Flue Type||Bosch Co-axial flue must be used|
|Maximum Horizontal Flue Length||10 mm|
|Maximum Vertical Flue Length||12 mm|
|Hot Water||15 mm|
|Cold Water||15 mm|
|Natural Gas||15 mm|
|LP Gas||15 mm|
|Warranty Details (Domestic)|
|Parts and Labour||3 Years|
|Heat Exchanger (Part Only)||10 Years|
CONTACT US FOR ACCESSING DUX HOT WATER SYSTEMS INSTALLATION AND REPAIRS!
Our main focus is to offer the most efficient installation for Dux hot water systems. You can even call us right away for any systems repair without any time delays!
WHAT DO YOU GAIN?
We manage a team of experts who would carefully understand your demand and work towards it. Our Dux hot water systems installation & repair service is valued all across Perth, making us famous!
